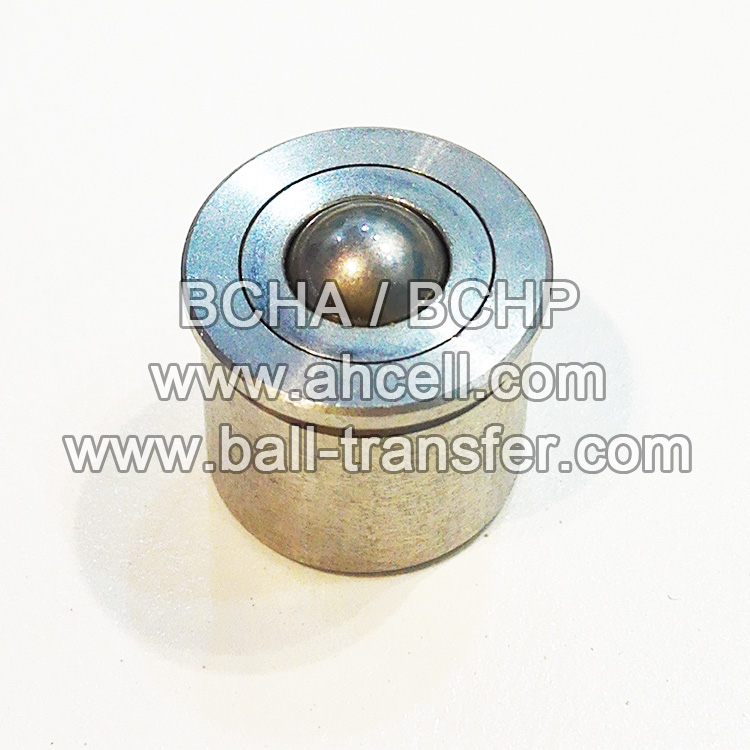

MISUMI Type BCHP Plunger Ball Rollers - Press Fit Ball Transfer Units
2016-9-26 View:
- Brand Ahcell
- Type BCHP,BCHPT
Introduction
| Type | [ M ]Material | |||||
| ①Main Body | ②Spacer | ③Ball | ④Casing | ⑤Spring | ⑥Retaining Ring | |
|
BCHP BCHPT |
304 Stainless Steel | 304 Stainless Steel | 440C Stainless Steel (HRC55~) | 304 Stainless Steel | 631 Stainless Steel | 304 Stainless Steel |
Specifications
| BCHP18 |
| Part Number | D | L | L1 | d | ℓ | Load (N) | ||
| Type | D1 | min. | max. | |||||
| BCHP | 14 | 16 | 14 | 1.5 | 5.56 | 1.5 | 23 | 30 |
| 18 | 20 | 17 | 2.5 | 8.73 | 2 | 24 | 38 | |
| 22 | 24 | 21.5 | 3.5 | 10.32 | 24 | 55 | ||
| Part Number | M (Fine) | D | D1 | L | L1 | L2 | a | d | P | ℓ | Load (N) | ||
| Type | Nominal | min. | max. | ||||||||||
| BCHPT | 16 | 16x1.5 | 19 | 13.5 | 14 | 1.5 | 9 | 2 | 5.56 | 15.4 | 1.5 | 23 | 30 |
| 20 | 20x1.5 | 24 | 16.5 | 17 | 2.5 | 10 | 2 | 8.73 | 18.5 | 2 | 24 | 38 | |
| 24 | 24x1.5 | 28 | 20.5 | 21.5 | 3.5 | 12 | 2.5 | 10.32 | 24 | 24 | 55 | ||
