UBC HEAVY DUTY BT158-4 BT254-4 BT300-4 BT450-4 RECESSED MOUNT BALL TRANSFER UNIT
2016-10-11 View:
- Brand Ahcell
- Type BT158-4 BT254-4 BT300-4 BT450-4
Introduction
Universal Bearing Company Airport cargo type ball transfer units
About Ball Transfer Unit Introduction and FAQ: <Click Here>
//Most complete models of ball transfer units in China//

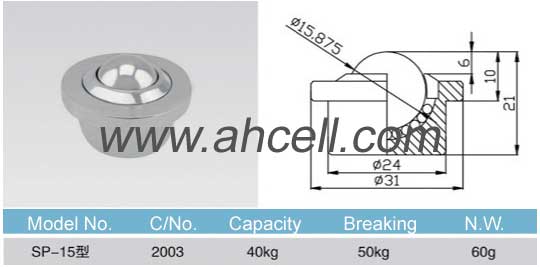

SP-15 ball transfer unit,40kg load capacity ,15mm machined ball unit
| Model No | Loading Capacity | Breaking Loading | Net Weight |
| SP-15 | 40kg | 50kg | 0.06kg |
SP-22 ball transfer unit,180kg load capacity ,22mm machined ball unit
| Model No | Loading Capacity | Breaking Loading | Net Weight |
| SP-22 | 140kg | 160kg |
0.185kg |
SP-25 ball transfer unit,180kg load capacity ,25mm machined ball unit
| Model No | Loading Capacity | Breaking Loading | Net Weight |
| SP-25 | 180kg | 200kg | 0.19kg |
SP-30 ball transfer unit,250kg load capacity ,30mm machined ball unit
| Model No | Loading Capacity | Breaking Loading | Net Weight |
| SP-30 | 250kg | 300kg | 0.38kg |
SP-45 ball transfer unit,450kg load capacity ,45mm machined ball unit
| Model No | Loading Capacity | Breaking Loading | Net Weight |
| SP-45 | 450kg | 500kg | 1.10kg |
