Introduction

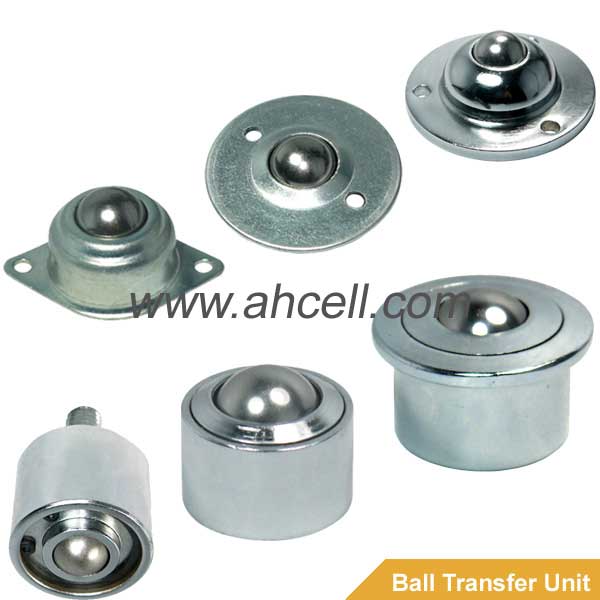

Ball transfer units

1)are omni-directional load-bearing spherical balls mounted inside a restraining fixture. They are identical in principle to a ball computer mouse upside-down, or a trackball, except there is an array of them side-by-side.


2)Typically the design involves a single large ball supported by smaller ball bearings.They are commonly used in an inverted ball up position where objects are quickly moved across an array of units, known as a ball transfer table, a type of conveyor system. This permits manual transfer to and from machines and between different sections of another conveyor system.


3)They are used in airports for luggage delivery, or in industry as part of manufacturing systems. Prior to the invention of the ball transfer unit, first patented by Autoset Production Ltd in 1958, these applications were solved by the use of inverted casters.However, casters recognize a trail, meaning that the wheels had to align before directional change could be achieved.Ball transfer units can also be used non-inverted ball down position as a type of caster, however this use is restricted by load-bearing limitations and the type of floor.


4)Manufacturers have addressed this problem with ball transfer units incorporating re-circulating ball principles, however the inverted position is still the most common application and the least problematic.



Part of List for CY series-light & medium duty


Model No.

Ball size

Loading capacity

Maximum/Breaking

1)

CY-15A

15MM

10KG/15KG

2)

CY-18A

18MM

20KG/25KG

3)

CY-25A

25.4MM

25KG/30KG

4)

CY-30A

30MM

40KG/50KG

5)

CY-38A

38MM

60KG/80KG





6)

CY-16B

16MM

10KG/15KG

7)

CY-25B

25MM

25KG/30KG

8)

CY-30B

30MM

35KG/40KG

9)

CY-38B

38MM

45KG/55KG





10)

CY-8H

8MM

3KG/5KG

11)

CY-15H

15MM

15KG/25KG

12)

CY-22H

22MM

40KG/55KG

13)

CY-30H

30MM

70KG/85KG


Part of List for SP series – heavy duty

Model No.

Ball size

Loading capacity

Maximum/Breaking

SP-8

8MM

8KG/15KG

SP-12

12MM

25KG/30KG

SP-15

15.875MM

40KG/50KG

SP-22

22.23MM

140KG/160KG

SP-25

25.4MM

180KG/200KG

SP-30

30.16MM

250KG/300KG

SP-45

45MM

450KG/500KG

SP-60

60MM

800KG/1200KG

SP-76

76MM

2000KG/2500KG

SP-90

90MM

3000KG/3500KG




SP-8FL

8MM

8KG/15KG

SP-15FL

15.875MM

40KG/45KG

SP-22FL

22.23MM

140KG/160KG

SP-30FL

30.16MM

200KG/230KG

SP-45FL

45MM

400KG/450KG



How to choose a ball transfer unit?

  • Maximum Loading Capacity = (weight of article)/3 or 9

        loading of ball transfer unit

  • Maximum Spacing = (article width)/3.5; (article length)/3.5

            how to count ball unit transfer


How to arranging and installing ball transfer units?


  • There are different arranging ways to fit for different moving requirements:

             how to arrange ball transfer unit




  • There are different models of BTU fo choosing:

      how to install ball transfer unit



Applications

  • Typical application in production lines:

ball transfer unit convyor table


  • Typical application in goods handling:

Ball transfer units table in Dubai International Airport

ball transfer unit table


Ball transfer units table in Dubai International Airport

ball transfer unit for airport
